How to make a correct room measurement?

You will need accurate measurements of your room to plan your kitchen. Use the following instructions so that you will not miss the key elements:

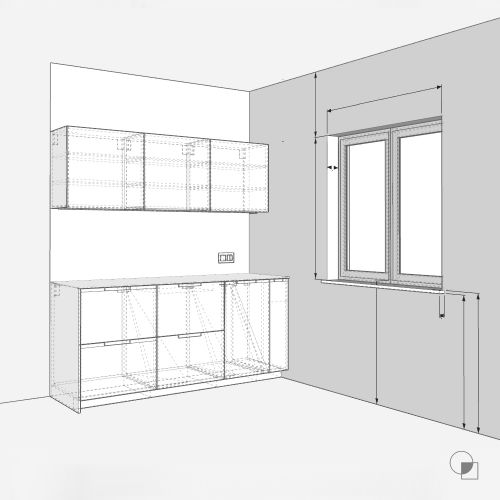

1. Draw your room in the form of a wall grid, starting from one corner, keeping to scale, draw each wall as in the example below.
2. Measure the width of each wall in 3 places (by the floor, halfway up and by the ceiling) and mark the smallest dimension on the drawing.
3. Measure the height of the room in several places and enter the smallest one in the drawing. Make sure you have the final chosen floor installed, if not, remember about its thickness - consult this dimension with a floor specialist.
4. Select all holes in the drawing, such as doors, windows, and passages. Remember to measure each of the holes from the floor by marking its height on the drawing. In the case of a window, remember to take the height of the sash from the floor. Remember also about the dimension of the window sill or window recess. In the case of a door, remember about a possible door frame.

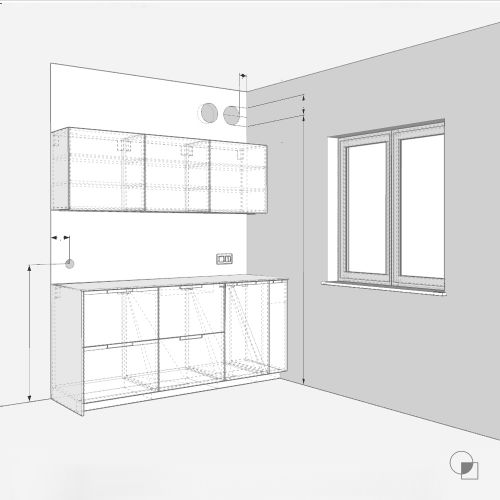

5. Then mark all installation elements in the drawing, such as: sockets, vents, radiators, lighting, water and gas installations. Mark their location as in the drawing below.
6. Consider whether you will need additional sockets or whether you will change the location of the water supply, which may affect the location of the sink cabinet. If you have such an opportunity, it is best to consult a specialist.
7. If you are using design assistance, it is worth taking photos of the room that will be useful for the person who will do the project.
